Eve 3c5.0mm2 and 2c*0.8mm2 Cable
Product Overview

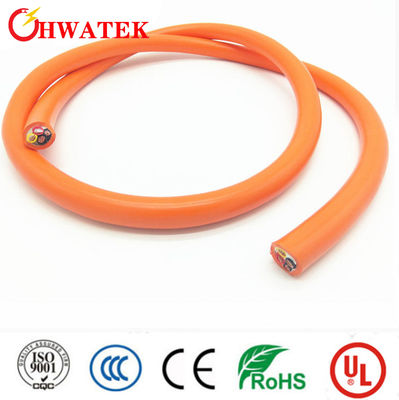

High-quality EV cable featuring 3×10AWG (5.0mm²) + 2×18AWG (0.8mm²) construction with TPE insulation and sheath materials.
Technical Specifications
Conductor: Bare Copper Stranded
Unit A: 3C×10AWG
Unit B: 2C×18AWG
Pitch (Ref): 59mm Max. / 32mm Max.
O.D. (Ref): 3.00mm / 1.18mm
Insulation Material: TPE
Min. Thickness: 1.14mm / 0.76mm
O.D.: 5.40±0.20mm / 2.80±0.10mm
Certifications
| Certificate No. |
Product Types |
| E473281 (UL) |
EVE 3×10AWG(5.0mm²)+2×18AWG(0.8mm²) 600V 105ºC
FT2 HWATEK |
Structure Diagram
Product Features
- Rated temperature: -40°C to +105°C
- Rated voltage: 600V
- Flexible construction with minimum bending radius of 5xOD
- Resistant to cold, oil (11 types), ozone, abrasion, UV, external pressure and thermal stress
- Passes IEC60332-1 flammability test
- Easy installation
Applications
Ideal for various electric vehicles, charging piles, power stations, and charging stations.
Structural Parameters
Customization Options
- Detailed dimensions subject to product specifications
- Other specifications available upon customer request
- Standard sheath colors: black or orange (custom colors available)
Company Profile
Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14,980 square meters. In 2020 we established our Nantong facility with 100 million RMB capital investment covering 34,000 square meters.
Certifications: ISO9001, ISO14001, IATF16949, ISO13485, CCC, UL, CUL, CE, CSA, ETL.
Frequently Asked Questions
Q: What can you supply?
A: We produce consumer electronics wires, hook-up wires, industrial cables, robot cables, EV charging cables, and new/green energy cables.
Q: What are your certificates?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, and ETL certificates.
Q: Can we get samples before ordering?
A: Yes, we can arrange samples for evaluation.
Q: What's your lead time?
A: Normally 2-3 weeks, 5-6 weeks during peak season.
Q: How do you guarantee quality?
A: Pre-production samples and final inspection before shipment.
